Launch-Composition step

Create a test environment with its dependencies in Codefresh infrastructure

The Launch Composition step provides the ability to launch long term running environments that can live outside the context of a running pipeline. You can use this step to automate your test environment creation through a codefresh.yml file instead of manually launching an environment from the UI.

NOTE
launch-composition creates a permanent test environment that keeps running even after a pipeline has finished. If you just want temporary test environments that run only while a pipeline is running, see service containers and the documentation page for integration tests.

Usage

ui defined composition

step_name:
  title: Step Title
  type: launch-composition
  composition: 'ui_defined_composition_name'
  environment_name: 'environment name'
  on_success:
    ...
  on_fail:
    ...
  on_finish:
    ...

inline composition

step_name:
  type: launch-composition
  composition:
    version: '2'
    services:
      app:
        image: owner/app:latest
      db:
        image: mongo
  environment_name: 'environment name'
  on_success:
    ...
  on_fail:
    ...
  on_finish:
    ...
  retry:
    ...

from file composition

step_name:
  type: launch-composition
  working_directory: $
  composition: './path/to/docker-compose.yaml'
  environment_name: 'environment name'
  on_success:
    ...
  on_fail:
    ...
  on_finish:
    ...

Fields

Field Description Required/Optional/Default
title The free-text display name of the step. Optional
description A basic, free-text description of the step. Optional
stage Parent group of this step. See using stages for more information. Optional
working_directory The directory in which to search for the composition file. It can be an explicit path in the container’s file system, or a variable that references another step.
The default is ${{main_clone}}.		 Default
composition The composition you want to run. It can be an inline YAML definition, a path to a composition file on the file system, or the logical name of a composition stored in the Codefresh system. Required
environment_name The environment name that will be given. In case a previous environment exists with the same name, it will first be terminated. The default value will the be the name/path provided in the ‘composition’ field. Default
composition_variables A set of environment variables to substitute in the composition. Optional
timeout The maximum duration permitted to complete step execution in seconds (s), minutes (m), or hours (h), after which to automatically terminate step execution. For example, timeout: 1.5h.
The timeout supports integers and floating numbers, and can be set to a maximum of 2147483647ms (approximately 24.8 days).

If defined and set to either 0s/m/h or null, the timeout is ignored and step execution is not terminated.
See Add a timeout to terminate step execution.		 Optional
fail_fast Determines pipeline execution behavior in case of step failure.
  • true: The default, terminates pipeline execution upon step failure. The Build status returns `Failed to execute`.
  • false: Continues pipeline execution upon step failure. The Build status returns Build completed successfully.
    To change the Build status, set strict_fail_fast to true.
 Optional
strict_fail_fast Specifies how to report the Build status when fail_fast is set to false.
NOTE:
Requires Runner chart upgrade to v6.3.9 or higher.

You can set the Build status reporting behavior at the root-level or at the step-level for the pipeline.
  • true:
    • When set at the root-level, returns a Build status of failed when any step in the pipeline with fail_fast=false fails to execute.
    • When set at the step-level, returns a Build status of failed when any step in the pipeline with fail_fast=false and strict_fail_fast=true fails to execute.
  • false:
    • When set at the root-level, returns a Build status of successful when any step in the pipeline with fail_fast=false fails to execute.
    • When set at the step-level, returns a Build status of successful when any step in the pipeline with fail_fast=false fails to execute.

NOTES:
strict_fail_fast does not impact the Build status reported for parallel steps with fail_fast enabled. Even if a child step fails, the parallel step itself is considered successful. See also Handling error conditions in a pipeline.		 Optional
when Define a set of conditions which need to be satisfied in order to execute this step.
You can find more information in the conditional execution of steps article.		 Optional
on_success, on_fail and on_finish Define operations to perform upon step completion using a set of predefined post-step operations. Optional
entry_point The name of main service Optional
retry Define retry behavior as described in retrying a step. Optional

Add a timeout to terminate step execution

To prevent steps from running beyond a specific duration if so required, you can add the timeout flag to the step.
When defined:

  • The timeout is activated at the beginning of the step, before the step pulls images.
  • When the step’s execution duration exceeds the duration defined for the timeout, the step is automatically terminated.

NOTE
To define timeouts for parallel steps, see Adding timeouts for parallel steps.

Here’s an example of the timeout field in the step:

ui defined composition

step_name:
  title: Step Title
  type: launch-composition
  composition: 'ui_defined_composition_name'
  environment_name: 'environment name'
  timeout: 45m
  on_success:
    ...
  on_fail:
    ...
  on_finish:
    ...

inline composition

step_name:
  type: launch-composition
  timeout: 45m
  composition:
    version: '2'
    services:
      app:
        image: owner/app:latest
      db:
        image: mongo
  environment_name: 'environment name'
  on_success:
    ...
  on_fail:
    ...
  on_finish:
    ...
  retry:
    ...

from file composition

step_name:
  type: launch-composition
  working_directory: $
  composition: './path/to/docker-compose.yaml'
  environment_name: 'environment name'
  timeout: 45m
  on_success:
    ...
  on_fail:
    ...
  on_finish:
    ...
Timeout info in logs

Timeout information is displayed in the logs, as in the example below.

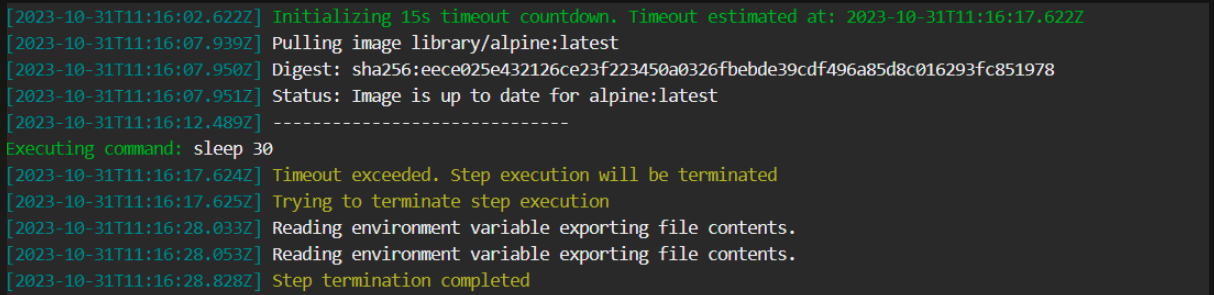

Step termination due to timeout in logs

Step termination due to timeout in logs
